Steel columns have been a staple in construction for decades, and adjustable steel columns have come a long way. But like anything else, there can be issues.
Steel columns are part of the structure of the home, so they are obviously very important. Below are just a few of the issues that we look for in steel columns on your home inspection:
Slanted Pole – When measuring the bottom and top of the pole, there shouldn’t be a displacement of over one inch. However, there are a number of factors that affect this including the diameter of the post as well as the height. Also, there should be no bend in the middle of the post because this suggests that it cannot handle the house’s weight and will eventually give in.
Not Connected to Floor – If the connection has been covered in concrete, there is no way for the inspector to be able to judge the connection itself. However, it must be mechanically connected.

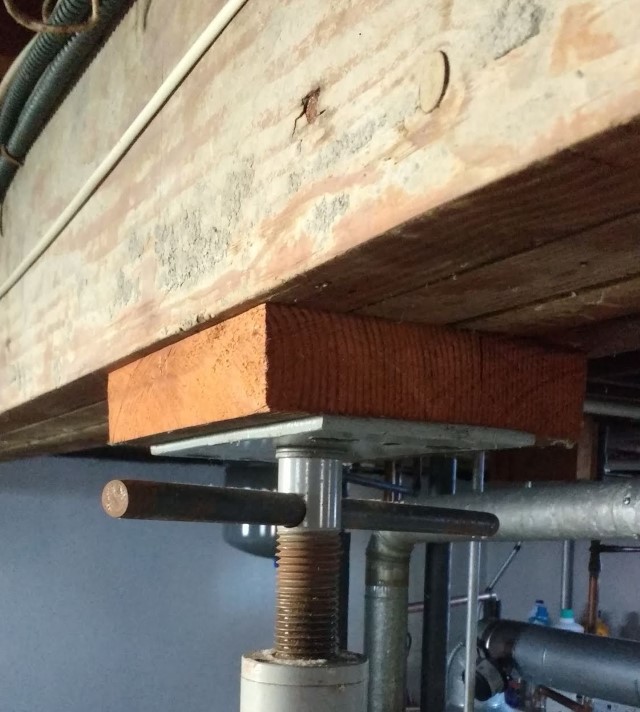

Over 3 Inches of Screw Thread – When measuring the placement of the pole, it will be considered defective if three inches or more is exposed for the screw head.
No Connection to Beam – To provide additional resistance when it comes to lateral displacement, the post and the beam need to be connected mechanically.
Cracks – Finally, a failure of the columns could become apparent by cracks in the walls upstairs. Not all cracks are bad, but when an issue with a steel column can be noticed below the wall where cracks appear, they can often be connected issues.
